Combination Jetting and Vacuum Truck
A combined sewer cleaning truck integrates high-pressure water jetting and vacuum suction in one vehicle for sewer lines, manholes, septic tanks, storm drains and industrial sludge cleaning.
One vehicle for pipe flushing, blockage removal and sludge recovery.
This product family is for buyers who need vacuum suction and high-pressure jetting in the same truck. It helps clean the pipe first, then recover sludge, sand, debris and liquid waste without sending two separate vehicles to the site.
Jetting + Vacuum Workflow
High-pressure water breaks sewer deposits and blockages, while the vacuum system removes loosened sludge, sand and wastewater into the sealed tank.
Municipal Service Route
Suitable for sewer lines, manholes, storm drains, septic tanks, pump stations and routine city drainage network maintenance.
Export Configuration
Tank volume, clean water capacity, pump flow, hose reel, suction boom and chassis brand can be adjusted for local road rules and service habits.
Built for municipal sewer maintenance, septic service and mixed cleaning work.
We confirm pipe diameter, blockage type, suction distance, tank volume, discharge method and clean water demand before recommending the final configuration.
Municipal sewer lines
Flush sediment, grease and blockage from drainage and wastewater pipelines.
Manhole and storm drain work
Recover sludge, silt and debris after jetting or emergency drainage service.
Septic tank service
Collect septic waste, sludge and mixed liquid waste for sealed transport.
Industrial pipe cleaning
Support factory drainage, oily wastewater pits and site cleaning projects.
Contractor fleets
One truck covers both flushing and suction tasks for repeated service routes.
Export projects
Chassis, tank, pump, hose and language marking can be matched by market.
Choose the truck by chassis, tank split, pump system and jetting demand.
The same combined sewer cleaning name can cover very different truck sizes. The practical choice depends on pipe conditions, water consumption, suction material and local payload limits.

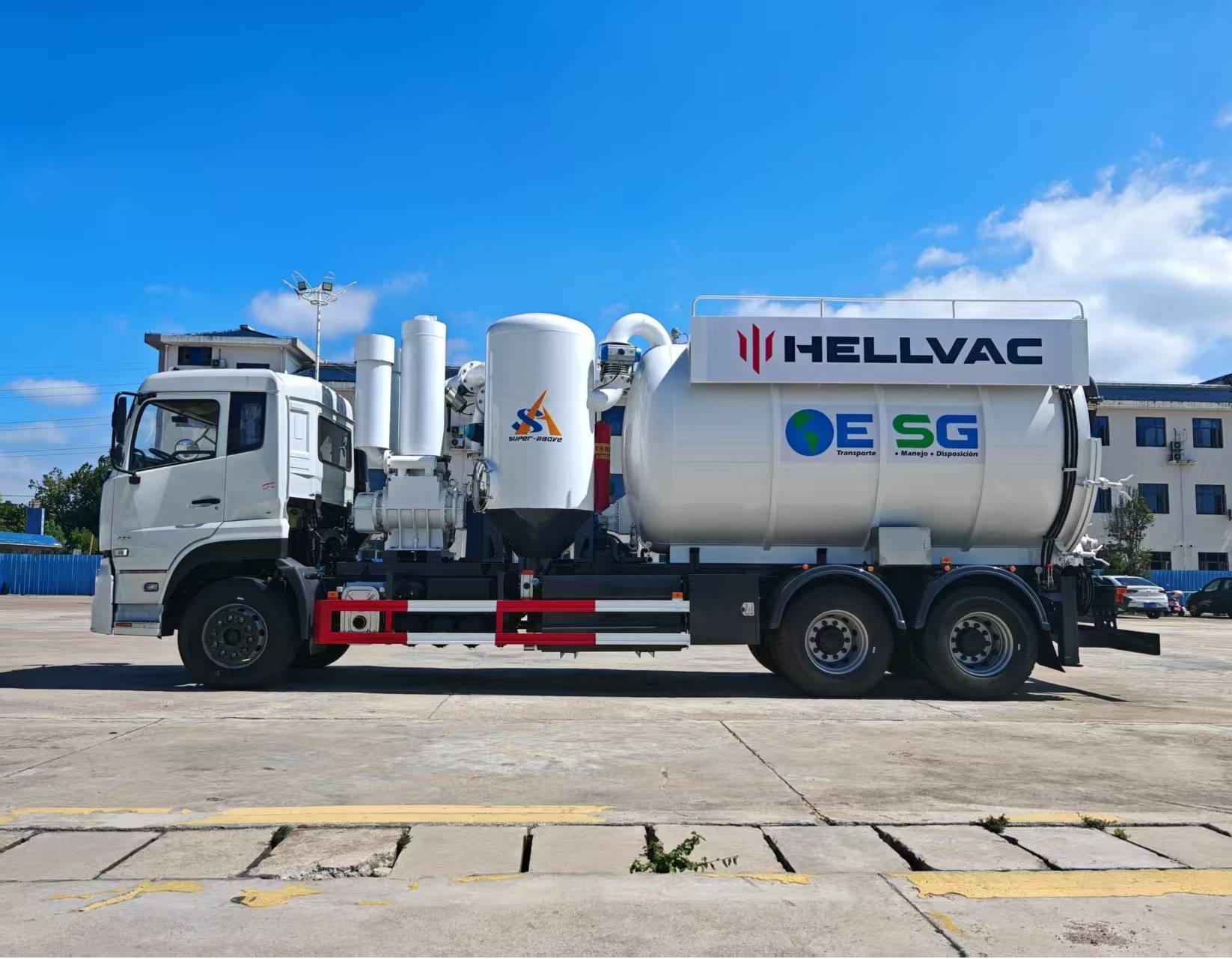

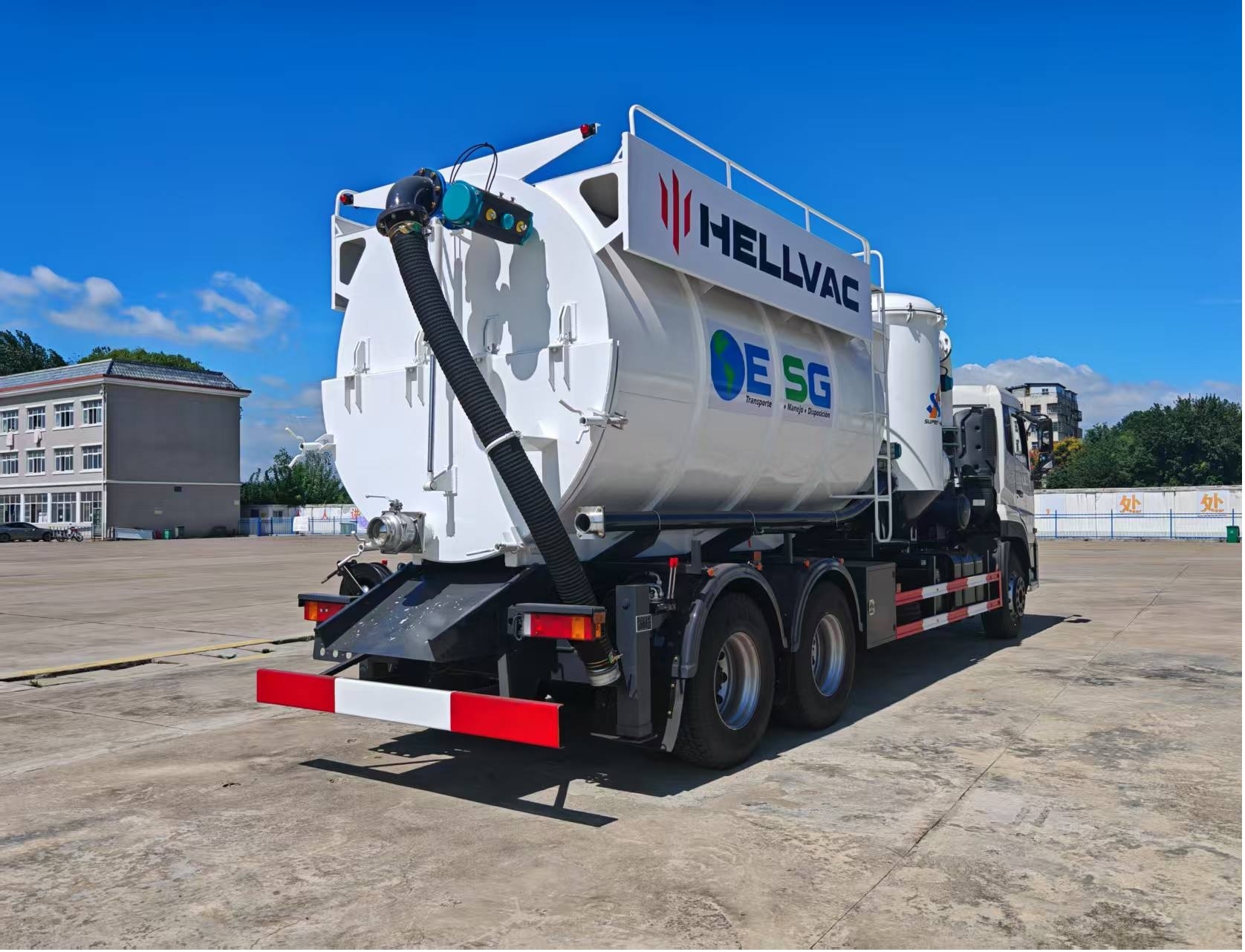

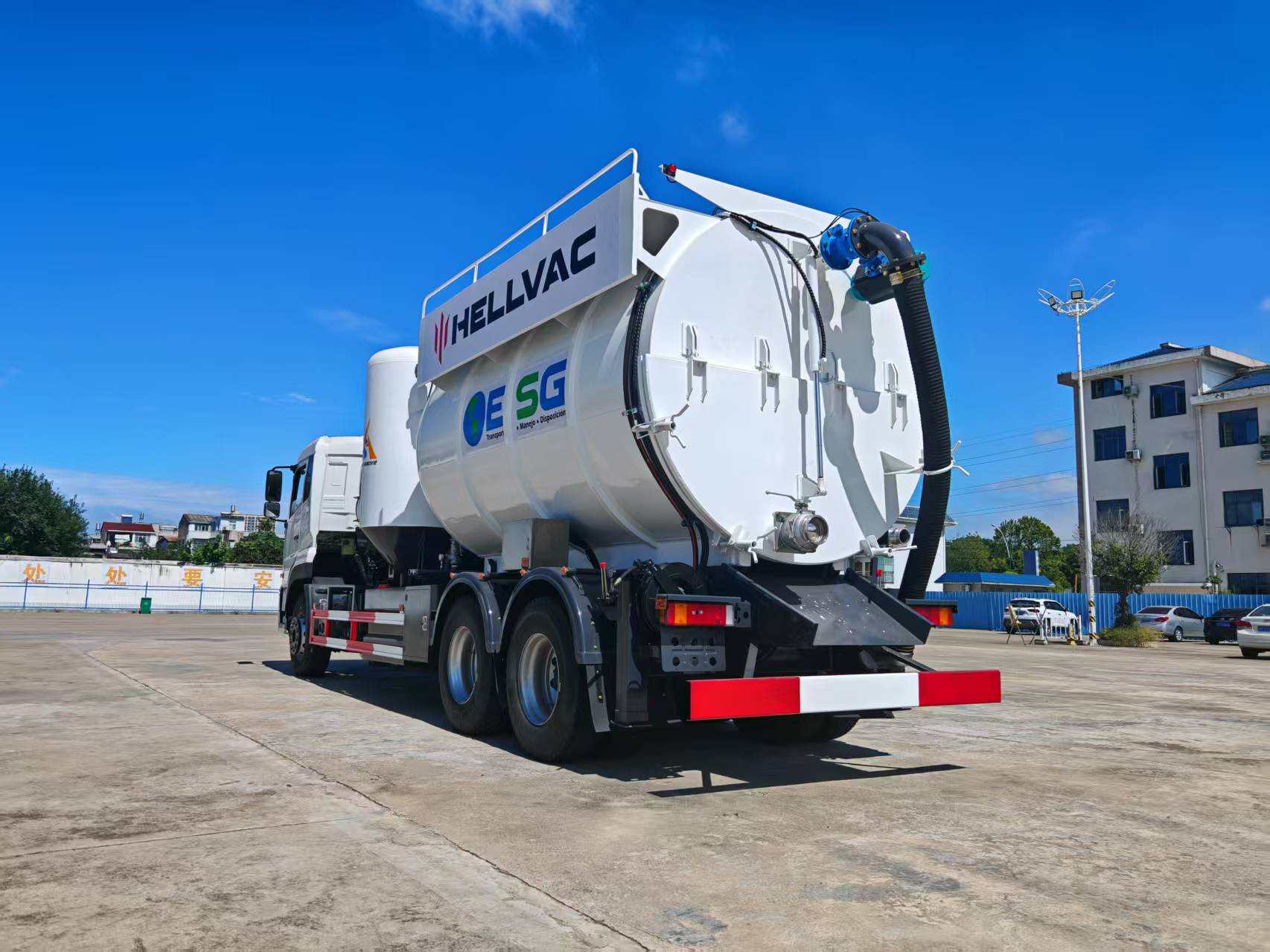

Combination jetting and vacuum truck views from supplied project materials.
The gallery keeps the product signal clear: one full side view as the main image, with rear and operation-side views showing tank body, rear door and suction layout.
Vehicle Configuration & Specifications
Reference values from supplied combined sewer cleaning truck materials. Final configuration can be adjusted by chassis availability, destination regulation, waste medium and operating requirement.
Chassis Specifications
| Item | Specification |
|---|---|
| Chassis Model | SX5288GYSMU434 |
| Engine Model | Weichai WP12.400E50 |
| Engine Power | 400 HP (295 kW) |
| Transmission | FAST 12JSD200 12-speed |
| Wheelbase | 4375 + 1400 mm |
| Front Axle | 7.5 ton |
| Rear Axle | 16 ton double reduction |
| Axle Ratio | 4.66 |
| Fuel Tank | 400 L aluminum alloy |
| Tires | 315/80R22.5, 10 + 1 spare |
| GVW | 25,000 kg reference class |
Vehicle Dimensions
| Item | Specification |
|---|---|
| Overall Length | 9,600 mm |
| Overall Width | 2,550 mm |
| Overall Height | 3,800 mm |
Tank And Upper Body
| Item | Specification |
|---|---|
| Tank Volume | 10 CBM reference configuration |
| Tank Material | Q345B manganese steel |
| Tank Thickness | 8 mm |
| Tank Dimensions | Approx. 4000 x 1800 mm |
| Tank Lifting Angle | 50 degree reference |
| Rear Door | Hydraulic opening and hydraulic locking |
Vacuum System
| Item | Specification |
|---|---|
| Vacuum Pump Brand | JUROP Italy reference option |
| Pump Model | HELIX 2000 |
| Pump Type | Roots vacuum pump |
| Air Flow | 10,860 m3/h |
| Operating Speed | 2,100 rpm |
| Maximum Vacuum | 93% |
| Maximum Pressure | 2.0 bar |
Operating Protection
| Item | Specification |
|---|---|
| Tank Temperature Resistance | Less than or equal to 250 C reference |
| Vacuum Pump Continuous Temperature | Less than or equal to 70 C reference |
| Filter Bag Temperature | Basalt filter bag, less than or equal to 250 C reference |
Standard Accessories
| Item | Specification |
|---|---|
| Ladder | 304 stainless steel ladder |
| Toolbox | Equipped |
| Working Lights | Equipped |
| Warning Beacon | Equipped |
| Hydraulic Outriggers | 2 sets reference option |
| High Temperature Seals | Equipped |
| Anti-Corrosion Coating | Electrophoretic primer plus topcoat |
Specifications are reference values from supplied technical materials. Final configuration can be adjusted according to chassis availability, destination market requirements, working medium and project operating conditions.
Combination jetting and vacuum truck FAQ
A short guide for buyers comparing one-truck sewer cleaning solutions before requesting a configuration.
What is a combination jetting and vacuum truck?
It is one vehicle that combines high-pressure water jetting with vacuum recovery. The jetting system breaks deposits and blockages in pipes, while the vacuum system collects sludge, sand, debris and wastewater into the tank.
When should I choose a combined truck instead of a standard sewage suction truck?
Choose a combined truck when your work includes pipe flushing, blockage removal or drain cleaning as well as waste recovery. A standard sewage suction truck is usually the better fit when the work is mainly septic, sludge or liquid-waste collection without high-pressure jetting.
What information is needed to select the right configuration?
Please share the pipe diameter, blockage or waste type, suction distance, preferred tank capacity, clean-water demand, chassis preference and destination country. These details help us match the tank split, vacuum pump, jetting pump, hose reel and export configuration.
Send your combined jetting and vacuum truck requirements.
Tell us the pipe diameter, blockage type, tank capacity, clean water demand, suction distance, chassis preference and destination country. We will recommend a practical combined cleaning and suction configuration.
