Heavy-Duty Vacuum & Jetting Truck
Heavy chassis vacuum and jetting trucks for sewer maintenance, sludge removal, long-distance suction, industrial waste handling and municipal emergency cleaning.
One stainless heavy platform for vacuum suction, jetting and corrosive sludge transfer.
This 8×4 configuration is built for buyers who need more than a standard carbon-steel septic truck. It combines SS316 stainless sludge storage, SS304 clean-water capacity, high-flow vacuum loading and 200 bar jetting in one heavy-duty platform for hot, corrosive GCC municipal and industrial work.
Stainless Tank Durability
SS316 sludge tank and SS304 water tank construction helps resist acidic sewage, salt-spray exposure and long-term corrosion risk in high-temperature service areas.
Vacuum + Jetting Duty
Samson / TM3400 water-ring vacuum loading and Annovi Reverberi high-pressure jetting support suction, sealed transport, pipe flushing and site cleanup in one route.
Export-Ready 8×4 Platform
SINOTRUK HOWO-NX 8×4 chassis, full-power split shaft PTO, waterproof stainless control box and E-coated sub-frame are matched for contractor and municipal fleet use.
Built for stainless sewage service, industrial suction and high-pressure cleaning work.
We confirm corrosive level, suction depth, discharge method, jetting duty, road condition and stainless tank requirement before recommending the final 8×4 configuration.
Choose the truck by tank material, chassis, pump system and discharge method.
The same heavy-duty vacuum and jetting name can cover very different jobs. For this model, stainless tank material and GCC working conditions are the first configuration checks.
| Chassis platform | SINOTRUK HOWO-NX 8×4 LHD heavy-duty chassis, selected for large tank payload, export fleet work and combined jetting / vacuum system integration. |
|---|---|
| Tank material | SS316 stainless sludge tank for corrosive sewage and acidic waste; SS304 clean water tank and stainless fittings for long-term anti-corrosion performance. |
| Working medium | Municipal sewage, sludge, slurry, industrial sediment, oil residue, corrosive liquid waste and mixed wet solids. |
| Tank volume | 15,000 L reference total capacity, including 12,000 L sludge tank and 1,000 L clean water tank; final layout can be adjusted by payload and local rules. |
| Pump system | Samson / TM3400 water-ring vacuum pump for high-temperature suction work, plus Annovi Reverberi 70 L/min, 200 bar jetting pump. |
| Operation layout | Hydraulic rear door, stainless suction and discharge ports, pneumatic valve control, high / low-level alarms and full-power PTO operation. |
Heavy vacuum and jetting configurations from supplied project materials.

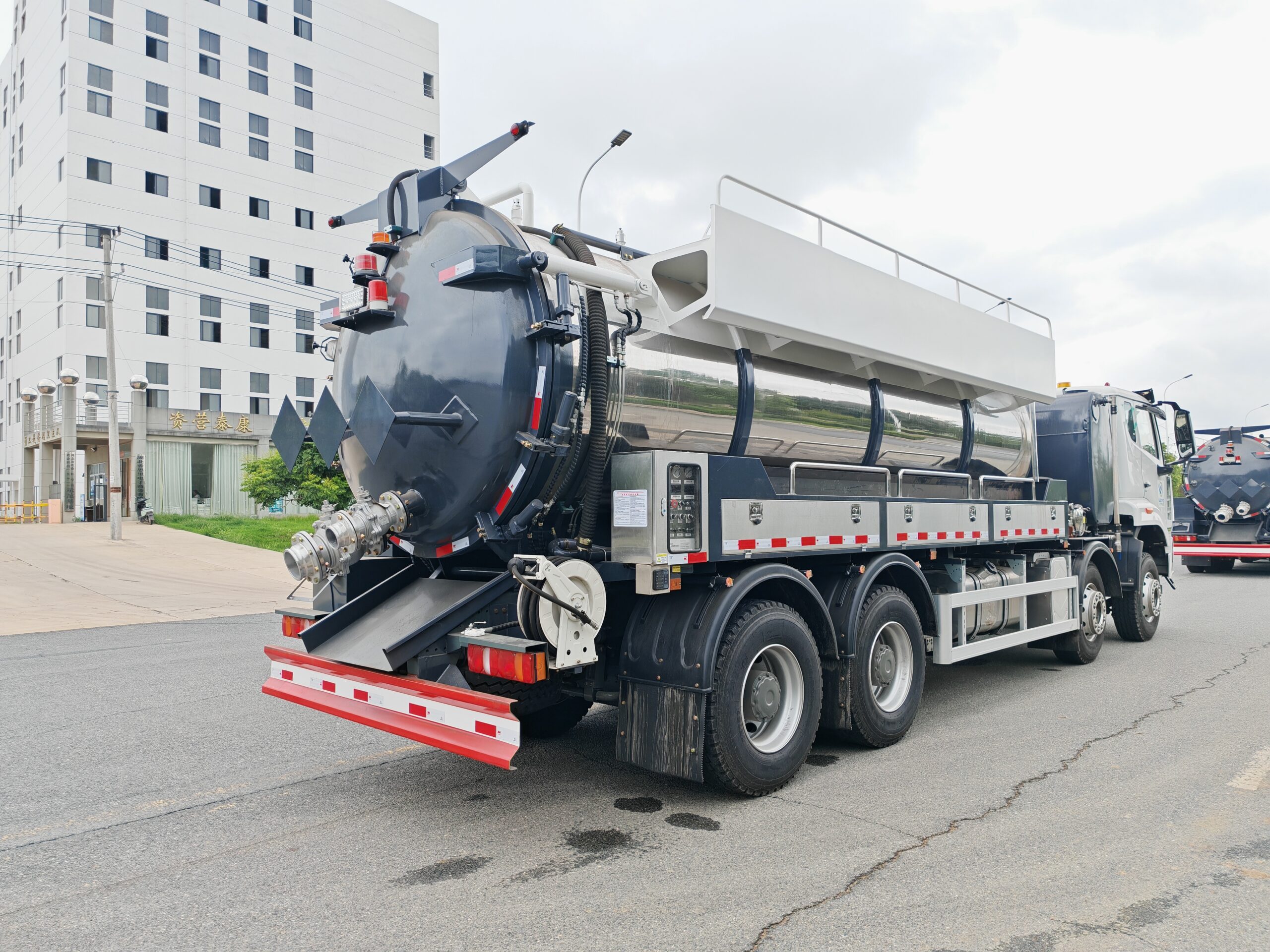

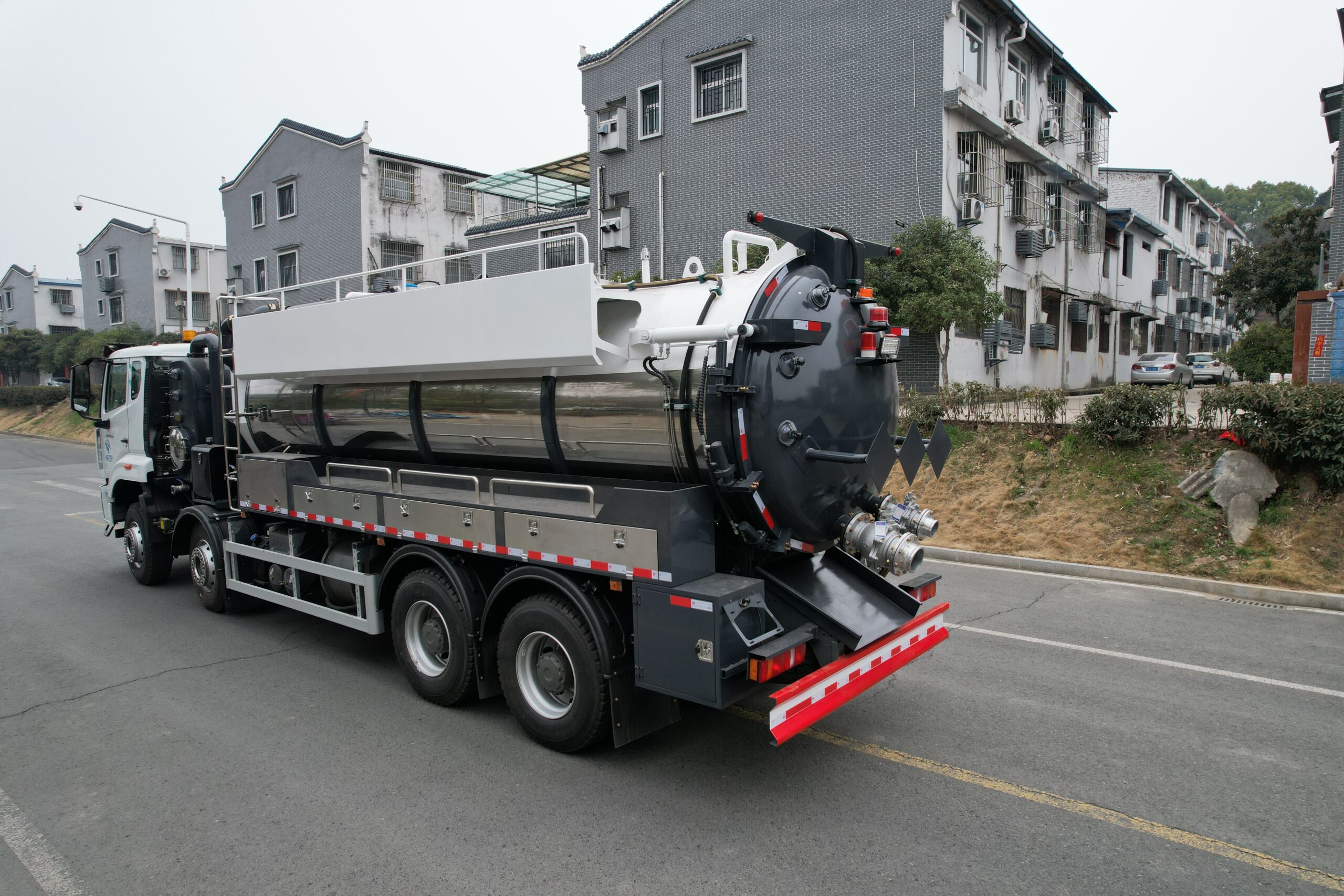

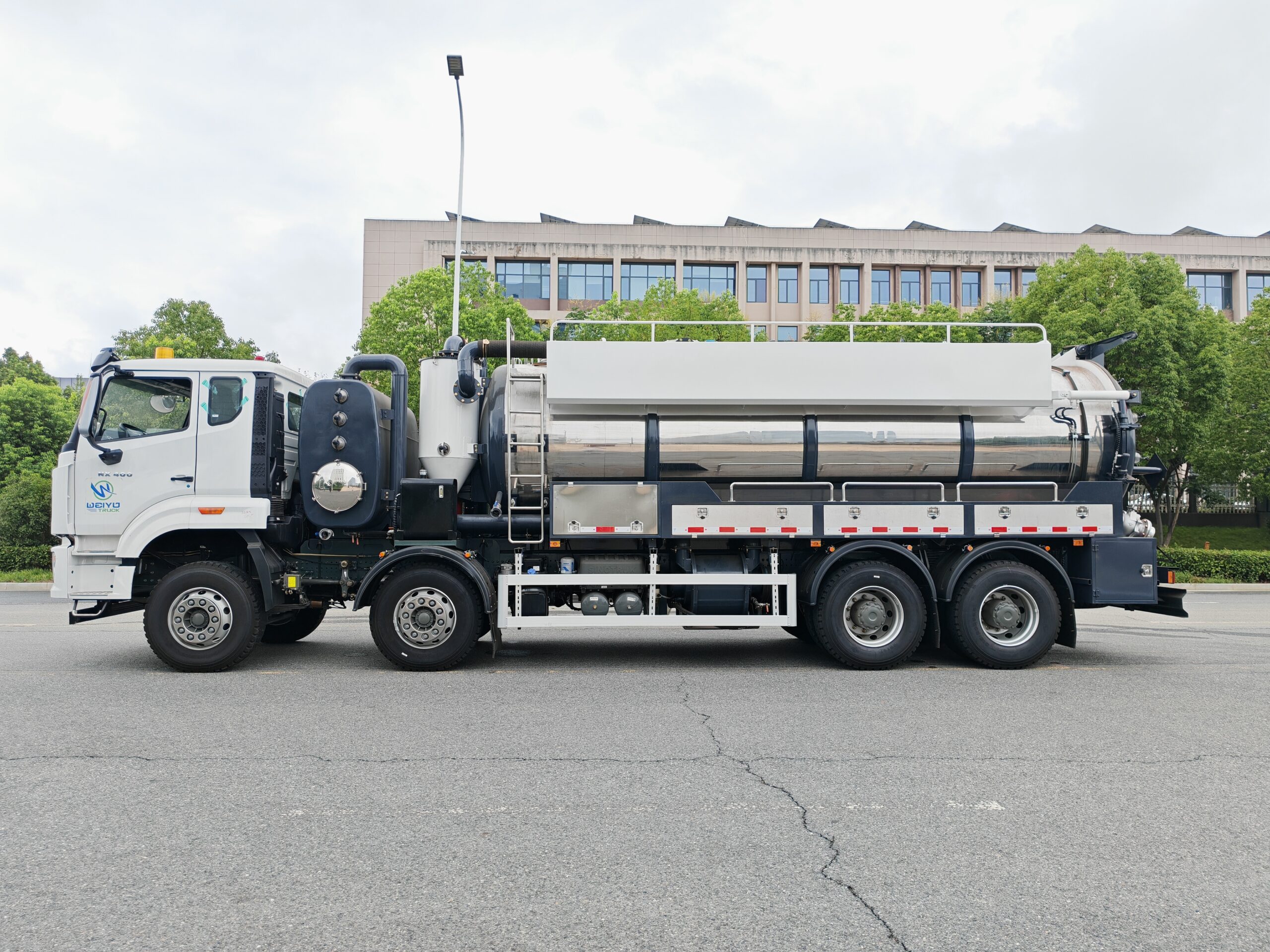

Real product photos are used for the gallery. The English-branded Dongfeng Tianlong vehicle is used as the main page signal, while semi-trailer and SINOTRUK-style units show capacity and configuration alternatives.
Vehicle Configuration & Specifications
Reference configuration from the supplied SINOTRUK HOWO-NX 8×4 stainless combined jetting and vacuum tanker proposal. The main technical direction is corrosion-resistant stainless tank construction for Saudi/GCC sewage service.
Truck and Chassis
| Item | Specification |
|---|---|
| Truck Direction | Heavy-duty combined high-pressure jetting and vacuum tanker for municipal and industrial sanitation work |
| Chassis Model | SINOTRUK HOWO-NX 8×4 cargo truck chassis, left-hand drive |
| Drive Configuration | 8×4 heavy-duty multi-axle chassis for large tank payload and export service routes |
| Working Market | Saudi / GCC direction, designed around high ambient temperature and corrosive sewage conditions |
| Front Axle | VGD95, 2 x 9500 kg, drum brake |
| Rear Axle | MCX16ZG, 2 x 16000 kg, drum brake |
| Tires | 12.00R20, 13 pcs including one spare tire |
Powertrain and PTO
| Item | Specification |
|---|---|
| Engine | MC11.44-50 diesel engine |
| Rated Power | 440 HP / 323 kW |
| Emission Standard | Euro 5 reference configuration |
| Gearbox | HW25712XST manual transmission, 12 forward and 2 reverse gears |
| PTO | HW70 PTO with full-power split shaft PTO arrangement |
| System Operation | Supports independent or simultaneous operation of high-pressure jetting and vacuum suction systems |
Stainless Tank System
| Item | Specification |
|---|---|
| Total Tank Capacity | 15,000 L total reference capacity |
| Sludge Tank | 12,000 L SS316 stainless steel tank, 6 mm body and 8 mm dish ends |
| Clean Water Tank | 1,000 L SS304 stainless steel tank, 6 mm construction |
| Core Advantage | SS316 sludge tank is selected for acidic sewage, corrosive waste and salt-spray exposure where ordinary carbon steel tanks may age faster |
| Surface Treatment | Mirror-polished stainless steel surface helps reflect solar radiation and supports easier exterior cleaning |
| Tank Fittings | Hydraulic rear door opening, SS304 flanges and 3 glass level-inspection windows |
High-Pressure Jetting System
| Item | Specification |
|---|---|
| Pump Brand | Annovi Reverberi high-pressure jetting pump |
| Flow Rate | 70 L/min |
| Rated Pressure | 200 bar / 20 MPa |
| Auxiliary Hose | 30 m DN13 auxiliary hose with handheld spray gun |
| Working Purpose | Pipe flushing, blockage removal, vehicle self-cleaning and support cleaning after vacuum loading |
Vacuum Suction System
| Item | Specification |
|---|---|
| Vacuum Pump | Samson / TM3400 heavy-duty water-ring vacuum pump |
| Airflow | 3400 m3/h |
| Climate Advantage | Water-ring pump direction helps maintain suction performance in 50 C+ ambient temperature operation |
| Air Compressor | Weilong 68-7000 with oil/gas and moisture separators |
| Working Medium | Municipal sewage, sludge, slurry, corrosive liquid waste and industrial sediment collection |
Pipeline and Control Layout
| Item | Specification |
|---|---|
| Suction Inlet | 4-inch stainless steel suction inlet |
| Discharge Outlet | 6-inch stainless steel discharge outlet |
| Control Box | SS304 waterproof control box |
| Valve Control | Pneumatic valves with high/low-level alarms |
| Operation Logic | Designed for heavy-duty suction loading, sealed tank transport, controlled discharge and jetting support from one vehicle platform |
Safety and Anti-Corrosion Protection
| Item | Specification |
|---|---|
| Shut-Off Protection | Primary and secondary shut-off valves with E-coated protection |
| Pressure Safety | Positive and negative pressure relief valves for tank and vacuum pipeline protection |
| Anti-Rust Treatment | Sub-frame, toolboxes and accessories use electrophoretic coating to improve resistance against coastal salt spray |
| Fleet Value | Stainless tank material, heavy chassis and water-ring vacuum system are positioned for long service life in demanding GCC sanitation work |
Reference values are summarized from the supplied technical proposal. Final production configuration should be confirmed by local regulation, working medium, payload target and export documentation requirements.
Send your heavy-duty vacuum and jetting truck requirements.
Share the target material, tank capacity, chassis preference, pump requirement, destination country and whether stainless steel is needed. We will recommend a practical configuration based on the supplied product families.
