Mobile Sludge Treatment Truck
Mobile sludge pressing and wastewater treatment equipment for municipal pipeline sludge, construction slurry and wastewater plant support. The truck combines slurry extraction, chemical mixing, plate-and-frame dewatering and mud cake discharge in one mobile platform.
On-site sludge dewatering for slurry and wastewater projects.
A mobile sludge treatment truck is built for customers who need to extract, condition, press and separate sludge at the job site. It reduces high-moisture sludge into mud cake and supports wastewater recycling or follow-up discharge handling.
Sludge Extraction
Slurry pump, feed pipeline and dosing system move sludge or construction slurry into the treatment process for continuous site operation.
Filter Press Dewatering
The 263 m² plate-and-frame filter press separates water from sludge and forms transportable mud cake for disposal or further handling.
Chemical Conditioning
Stainless mixing and flocculation tanks help prepare the sludge before pressing, improving separation performance for suitable materials.
Built for municipal, construction and wastewater treatment work.
We confirm sludge source, solids content, hourly treatment target, power supply, discharge requirement and road condition before recommending the final configuration.
Choose the truck by chassis, filter press, pump and treatment capacity.
The vehicle can be discussed around sludge type, treatment capacity, filter press area, mixing tank volume, pump power and project operating conditions.
| Chassis platform | SHACMAN Delong M3000 heavy-duty chassis direction, overall dimensions about 12200 x 2550 x 3760 mm. |
|---|---|
| Working medium | Municipal sludge, construction slurry, wastewater plant sludge, pipeline sediment and inorganic slurry. |
| Treatment capacity | Reference mud cake output about 4.5 m³/h, with suitable sludge condition and process setting. |
| Filter press system | XMZP262/1500-U programmable automatic plate-and-frame filter press with 263 m² filter area. |
| Operation layout | Slurry extraction, chemical mixing, flocculation, feed pump, filter pressing, water reuse and mud cake conveying. |
Mobile treatment truck layout for sludge pressing work.

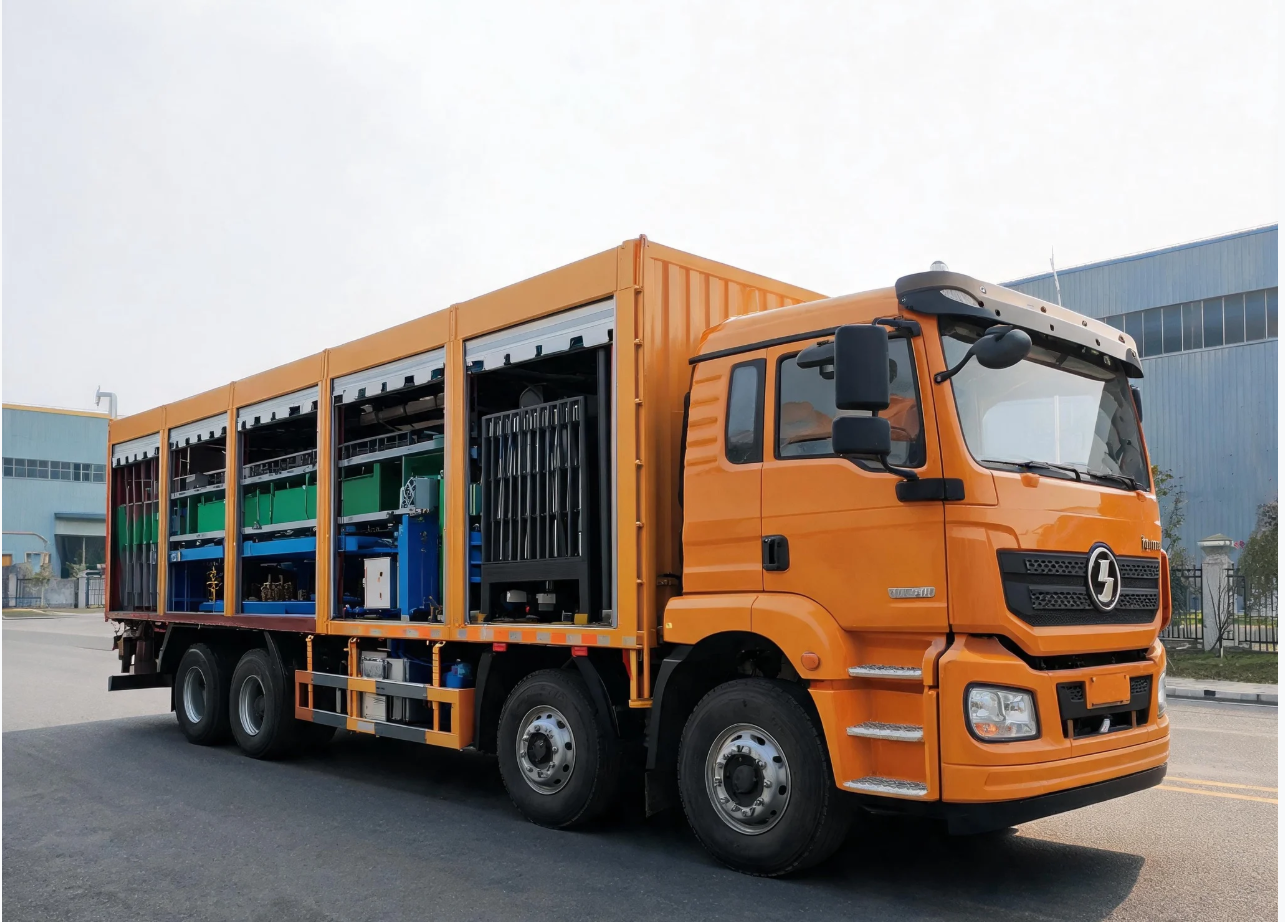

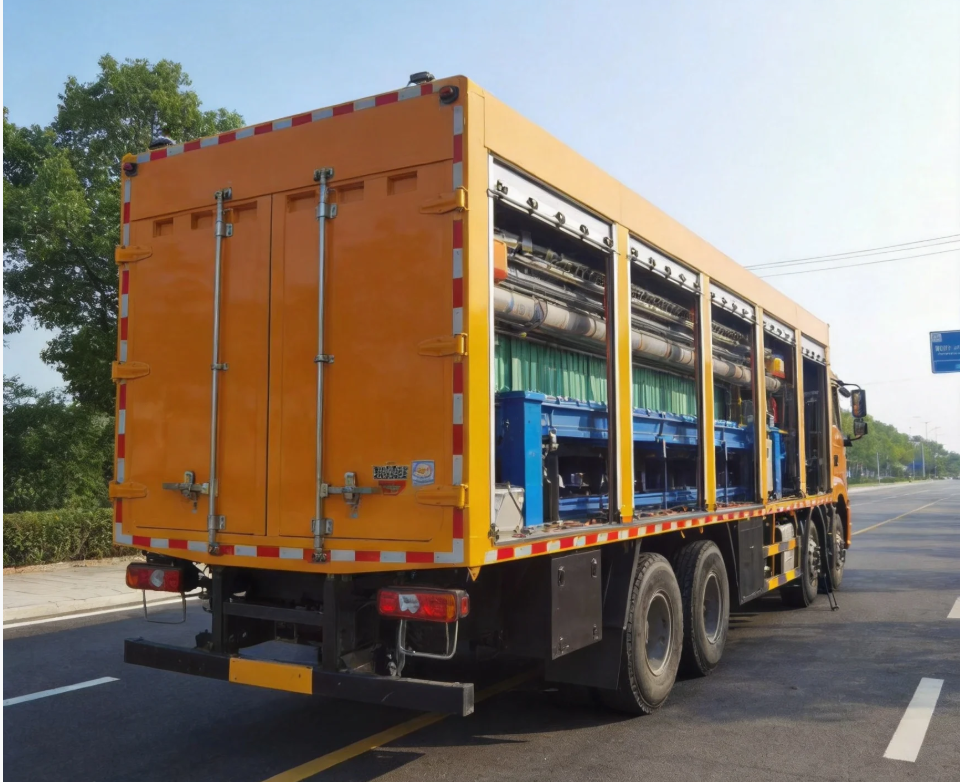

The supplied vehicle photos show the complete side profile, chassis layout and rear equipment arrangement of the mobile sludge treatment truck.
Vehicle Configuration & Specifications
The following reference values are summarized from the supplied technical material. Final export configuration can be adjusted by sludge condition, local road regulations and project requirements.
| Item | Specification |
|---|---|
| Truck Direction | Mobile sludge treatment truck / mobile sludge pressing vehicle |
| Chassis Model | SHACMAN Delong M3000 direction, model reference SX5419TXJMC6Z1 |
| Drive Configuration | Heavy-duty multi-axle chassis direction for mobile treatment equipment |
| GVW | Reference gross vehicle weight about 35880 kg |
| Overall Dimensions | Approx. 12200 x 2550 x 3760 mm |
| Cab | M low-roof cab, hydraulic suspension, air-cushioned seat, air conditioning, power windows and ABS |
| Frame | 308 mm straight-through double-layer frame, locally triple-layer reinforced structure |
| Cab Comfort | Hydraulic suspension cab, air-cushioned seat and manual cab tilt reference configuration |
| Item | Specification |
|---|---|
| Engine | Weichai 350 HP diesel engine direction |
| Emission Standard | National VI reference configuration from supplied material |
| Transmission | FAST 10JSD140T 10-speed manual transmission |
| Axle | Hande 16-ton dual-stage wheel-end reduction axle direction |
| Braking | Air brake system with ABS and power steering support |
| Vehicle Weight | Curb weight reference about 35750 kg, subject to final equipment configuration |
| Item | Specification |
|---|---|
| Filter Press Model | XMZP262/1500-U programmable automatic plate-and-frame filter press |
| Filter Area | 263 m² reference filter area |
| Filter Plates | 66 pieces including end plates, 1500 x 1500 mm plate size |
| Filter Chamber | 65 chambers, chamber volume about 3.8 m³ |
| Cake Thickness | Approx. 30 mm mud cake thickness |
| Host Size and Weight | Filter press equipment about 7500 x 2200 x 1900 mm, host weight about 17T |
| Item | Specification |
|---|---|
| Main Hydraulic Station | 7.5 kW hydraulic station for filter press operation |
| Plate Pulling Motor | 1.5 kW plate-pulling motor |
| Conveyor Belt | 4 kW conveyor belt system for mud cake handling |
| Feed Pump | 37 kW feed pump, DN150 flange feed port reference |
| Feed Pressure | Reference feed pressure not higher than 0.8 MPa |
| Item | Specification |
|---|---|
| Chemical Mixing Tank | 2 m³ 304 stainless steel dual-agitator chemical mixing tank |
| Flocculation Tank | 500 L 304 stainless steel flocculation tank |
| Dosing Pump | 1.5 kW chemical dosing pump |
| Electrical Cabinet | Supports external power connection for site operation |
| Water Reuse | Filtered water can return to chemical tank or clean water tank by configuration |
| Item | Specification |
|---|---|
| Slurry Pump | 7.5 kW slurry extraction pump |
| Water Supply Pump | 1.1 kW water supply pump |
| Applicable Medium | Municipal sludge, construction slurry, wastewater treatment sludge and inorganic slurry |
| Reference Output | About 4.5 m³ mud cake per hour under suitable operating conditions |
| Cake Moisture | About 30% moisture content reference from supplied material |
| Process Route | Extraction, dosing, mixing, flocculation, filter pressing, water return and mud cake discharge |
| Item | Specification |
|---|---|
| Inorganic Slurry Output | Reference output about 20 m³ for suitable inorganic slurry condition |
| Operating Pressure | Hydraulic clamping pressure reference 18-22 MPa |
| Top Cover | Removable top cover structure for equipment access and maintenance |
| Main Beam | Q345B 450 mm I-beam direction from supplied filter press material |
| Maintenance Support | Final maintenance layout can be adjusted by overseas project service requirements |
Send your mobile sludge treatment truck requirements.
Share the sludge source, treatment capacity target, moisture requirement and project country. CLW Group will prepare a suitable mobile sludge treatment truck configuration for your project.
